Inserting Micro SD Card:

Please insert the memory card into the Micro SD Card slot with the chip contact surface facing up. Insert it until you hear a click sound. Please ensure that the SD card is at least a class 10 with a minimum capacity of 32GB a maximum capacity of 256GB. it is preferred that the SD card is from brands such as ScanDisk, Kingston, Toshiba and Samsung.

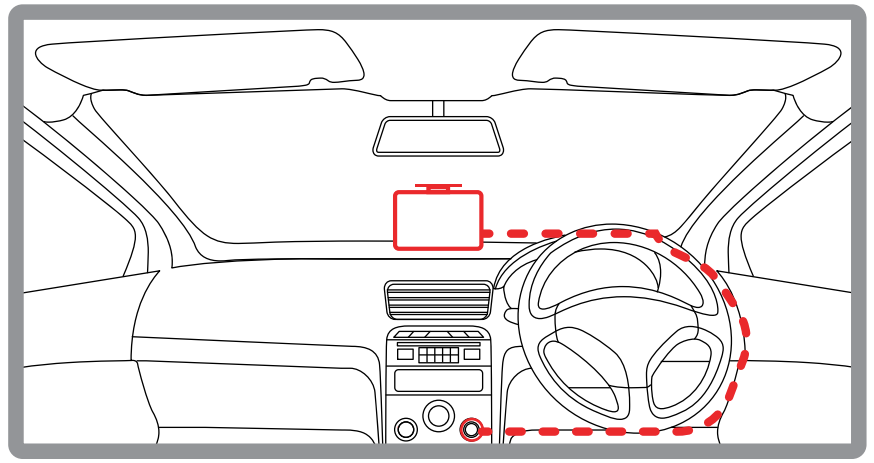

Mounting the Monitor:

There are two mounting options available for installation:

• Windscreen Suction Mount:
  1. Insert the windscreen suction mount lock at the back of the SmartView 72.
  2. Clean the windscreen area where the suction mount is to be mounted.
  3. Unlock the mount.
  4. Press the suction mount on the windscreen and lock it
• Dashboard Suction Mount:
  1. Attach the suction mount to the 3M adhesive mount plate.
  2. Attach the SmartView 55 to the suction mount.
  3. Firmly press the base onto the desired position for one minute to ensure that the adhesive makes full contact with the intended installation position.

Please take into account when mounting:

• Make sure the camera lens is within the range of the windscreen wiper so that there is a clear line of view when it rains.
• Do not touch the camera lens. Fingerprints on the lens will result in unclear videos or photos. If your photos or videos are blurred, this may be rectified by cleaning the lens gently with a microfibre cloth.
• Please use only the included charging cable to power the Smart Monitor. Other cables may not work or may damage the product
